KINGWAY EP F4 + K3000 – Electric Pallet Truck with a Generator for Only €1!
The KINGWAY EP F4 is a modern electric pallet truck designed for efficiency, convenience, and time savings. Perfect for warehouses, stores, and logistics centers, its maneuverable design and intuitive controls allow for easy operation even in narrow spaces. The advanced electric drive system ensures smooth and stable movement, while the lithium-ion battery provides long working hours without frequent recharging.
🔥 Limited-time offer – Get a K3000 3 kW generator for just €1 with every purchase!
🚀 Maximum Comfort and Functionality
✅ Load capacity: 1500 kg – Effortless transport of heavy pallets and loads.
✅ Precision steering – A 136 cm turning radius ensures smooth maneuvering even in tight spaces.
✅ Efficient 0.75 kW electric motor – Ensures smooth operation without jerking or sudden stops.

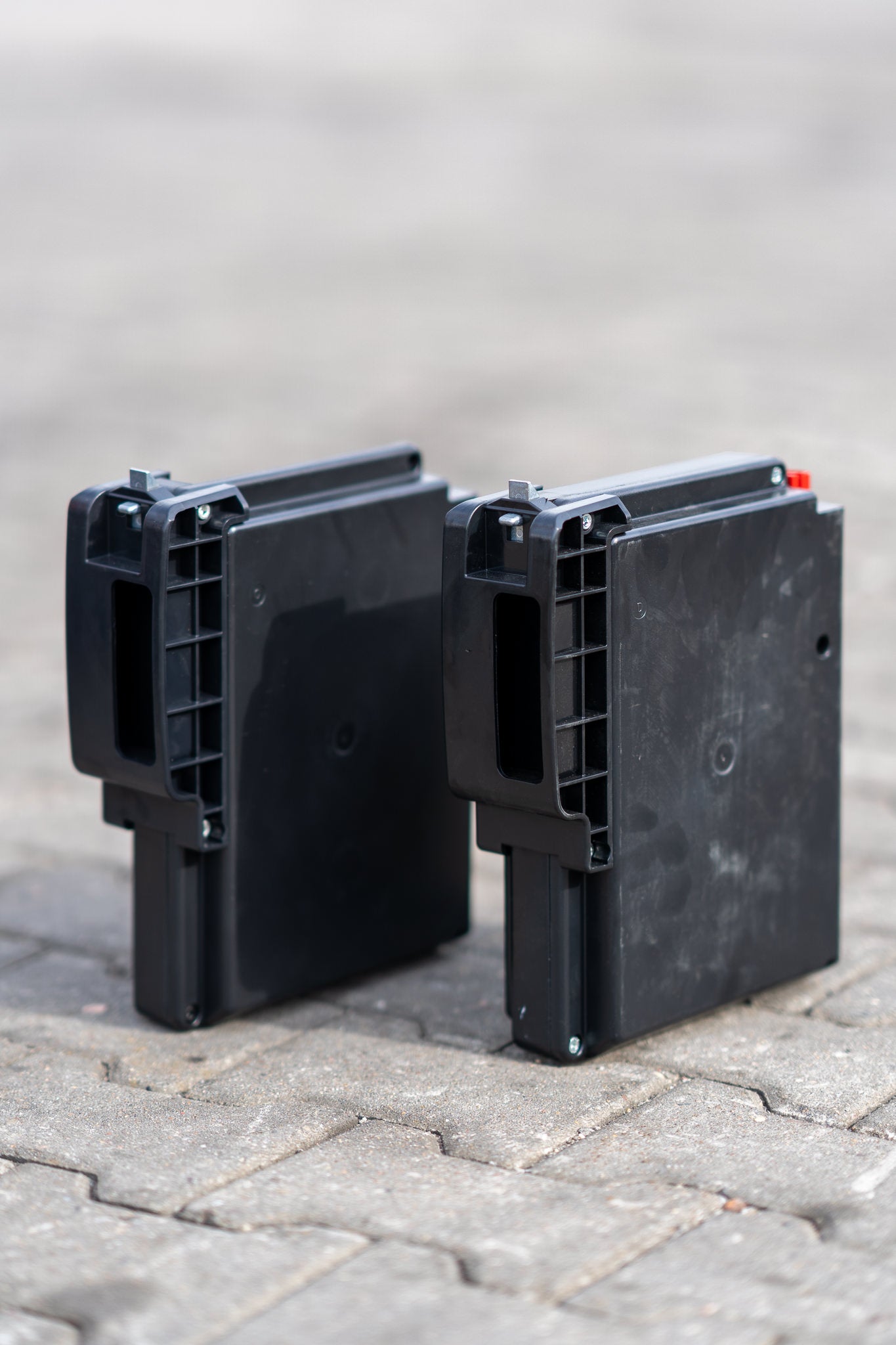

✅ High-performance 24V/20Ah lithium-ion battery – Long working hours, fast charging, and no need for battery replacements.
✅ Forks: 115 cm long and 56 cm wide – Perfect for standard pallets, ensuring stable lifting and secure transport.
✅ Energy-efficient – only 0.18 kWh/h – Low energy consumption reduces operating costs.
🎁 BONUS: K3000 Generator – This model comes with a 3 kW power generator with 230V sockets, providing an additional energy source whenever needed!
KINGWAY – The Best Pallet Trucks for Your Business!
When you choose KINGWAY pallet trucks, you are investing in reliability, safety, and maximum work comfort. Our electric pallet trucks are designed for intuitive operation and smooth performance, making them perfect even for beginners.
🔹 Easy to Use – KINGWAY pallet trucks work flawlessly from the very first use. Their intuitive controls make pallet transport fast and effortless.
🔹 Maximum Safety – A sturdy construction and reliable safety systems protect both the operator and the load. With stable handling and precise maneuvering, every task is completed with ease and confidence.
🔹 Superior Quality and Comfort – With an ergonomic design, modern features, and outstanding maneuverability, our pallet trucks operate smoothly and effortlessly, even in tight spaces.
🔹 The Best Choice on the Market – If you’re looking for a high-performance, durable, and modern pallet truck, KINGWAY is the unbeatable option.
🚛 Fast & Free Delivery! – Order now and enjoy free delivery within 1-3 days to Germany, France, the Netherlands, Belgium, Luxembourg, Sweden, the Czech Republic, Slovakia, and Croatia. Wherever your business operates, KINGWAY ensures your pallet truck arrives quickly and hassle-free - right to your doorstep!
Whether you run a warehouse, store, or logistics center, KINGWAY provides the equipment you can rely on every day! 🚀
TECHNICAL DATA
TECHNICAL DATA
- Model: F4
- Battery: Lithium-ion (Li-Ion)
- Drive Type: Electric
- Operation: Walk-behind
- Load Capacity (Q): 1500 kg
- Load Center Distance (c): 600 mm
- Distance from Load Center to Drive
- Axle (x): 950 mm
- Wheelbase (y): 1180 mm
- Net Weight: 120 kg
- Axle Load, Loaded Front/Rear: 480/1140 kg
- Axle Load, Unloaded Front/Rear: 90/30 kg
- Wheel Type: Polyurethane
- Front Wheel Size: 210×70 mm
- Rear Wheel Size: 80×60 mm
- Additional Support Wheels: 74×30 mm
- Number of Wheels Front/Rear (x=drive wheel): 1x —/4
- Fork Spread, Front (b10): –
- Fork Spread, Rear EU (USA) (b11): 560 (685) mm
- Lifting Height (h3): –
- Tiller Height in Driving Position
- Min./Max. (h14): 750/1190 mm
- Lowered Fork Height (h13): 88 mm
- Overall Length (L1): 1550 mm
- Length to Fork Face (L2): 400 mm
- Overall Width (b1/b2): 590 (695) mm
- Fork Dimensions (s×e×l): 55x150x1150 mm
- Fork Spread (b5): 560 (685) mm
- Ground Clearance, Center of
- Wheelbase (m2): 25 mm
- Aisle Width for Pallets 1000×1200
- Crosswise (Ast): 2160 mm
- Aisle Width for Pallets 800×1200
- Lengthwise (Ast): 2025 mm
- Turning Radius (Wa): 1360 mm
- Travel Speed, Loaded/Unloaded: 4/4.5 km/h
- Lifting Speed, Loaded/Unloaded: 0.017/0.020 m/s
- Lowering Speed, Loaded/Unloaded: 0.058/0.046 m/s
- Maximum Gradeability,
- Loaded/Unloaded: 6/16 %
- Service Brake: Electromagnetic
- Drive Motor Power (S2 60 min): 0.75 kW
- Lifting Motor Power (S3 15%): 0.5 kW
- Battery Voltage/Nominal Capacity: 24V/20Ah
- Battery Weight: 5 kg
- Energy Consumption (DIN EN 16796): 0.18 kWh/h
- Handling Efficiency (VDI 2198): 60 t/h
- Energy Efficiency (VDI 2198): 333.33 t/kWh
- Drive Control Type: DC
- Steering System Design: Mechanical
- Noise Level: 74 dB(A)
K3000 Generator for €1!
This compact 3 kW generator with two 230V sockets, air cooling, and manual start provides reliable backup power for your home and workshop. You will receive it for a symbolic €1 with your purchase.
🛠 Every pallet truck comes with a 12-month warranty! – Buy with confidence and operate worry-free – enjoy full protection for an entire year. After that, if needed, there’s no need to search for service or spare parts. Just reach out to us, and we’ll take care of everything quickly and professionally!
